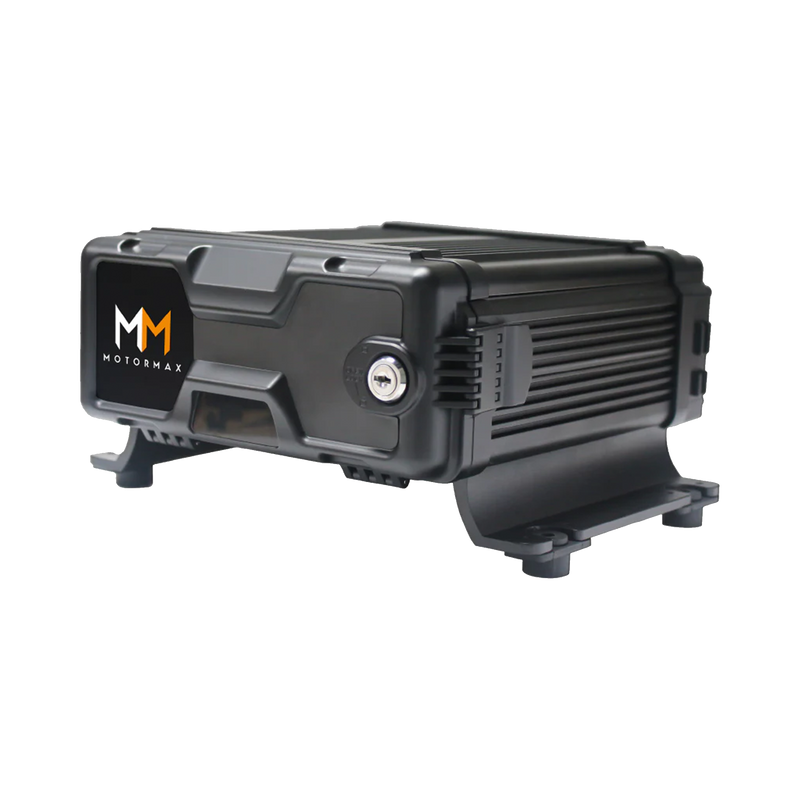

16 Channel DVR



  • 8 Channel AHD + 8 Channel IPC
  • Supplied with 2TB shock resistant HDD
  • Supports SD card mirror back up
  • Built in GPS for vehicle tracking
  • 2 Video outputs
  • Supports full AHD 1920x1080 resolution

 Offline Features

  • View footage, GPS & Speed from connected HDD
  • Export footage to .avi file type

    Full Specification


    Full Specification
    System OS Linux 3.18.20
    Control Mode Easy Check, network*, CP4, mouse (3G/4G/Wifi*)
    Video Input 8 Channels AHD + 8 Channels IPC
    Output 1 channel CVBS; 1 channel VGA (supports 1080P backward compatible with 720P)
    Audio Input 8 Channes
    Output 2 Channel
    Display Display Split 1/4/9
    OSD GPS information, alarm, temperature, acceleration, voltage, device information, software version, MCU version, network status
    Operation Interface Graphical user interface
    Recording Video/Audio Compression Video: H.265
    Audio: ADPCM (G.711A, G711U optional)
    Image Resolution PAL: 1080P,720P,WD1(928X576),WHD1(928X288),
    NTSC: 1080P,720P,WD1(928X480),WHD1(928X240),
    Digital: 1080P(1920X1080),720P(1280X720).
    Image Quality 1-8 Adjustable levels
    Recording Mode Boots up/schedule/alarm event recording
    Pre & Post Recording Pre 0-60 Minutes / Post 0-30 Minutes
    Playback Playback Channel Local: supports 1/4/9 channels (single channel main stream, multi-channel sub stream)
    WEB: supports 1/4/9 channel synchronous playback
    Search Mode Date & time, Channel, Event
    Locating GPS Location tracking, speed detection and time sync
    Sensor G Sensor 6 Axis
    Storage HDD & SD Card Supports 2.5” HDD or SSD up to 2TB & 1 x SD (Max 256GB)
    Interface USB 1 x USB2.0 (Type A) + 1 x USB2.0 (Type B)
    SIM* 1 x PUSH-PUSH SIM card slot
    RS232 / RS485 2 x RS232, 2 x RS485,2 x CAN
    Sensor 8 Inputs & 2 Outputs
    Speed 1 Channel pulse speed detection
    Inter Communication 1x MIC Interface
    Power Input DC8-36V, ACC
    Output 5V@500mA, 12V@500mA
    Max Power / Standby Power Consumption 80W / 0W



    Dimensions Dimension (LxWxH) 324.6 x 238 x 115.5
    Environment Operating Temperature -40°C to +85°C (Storage) : -40°C to +70°C (With Heating)
    Operating Relative Humidity 8%-90%
