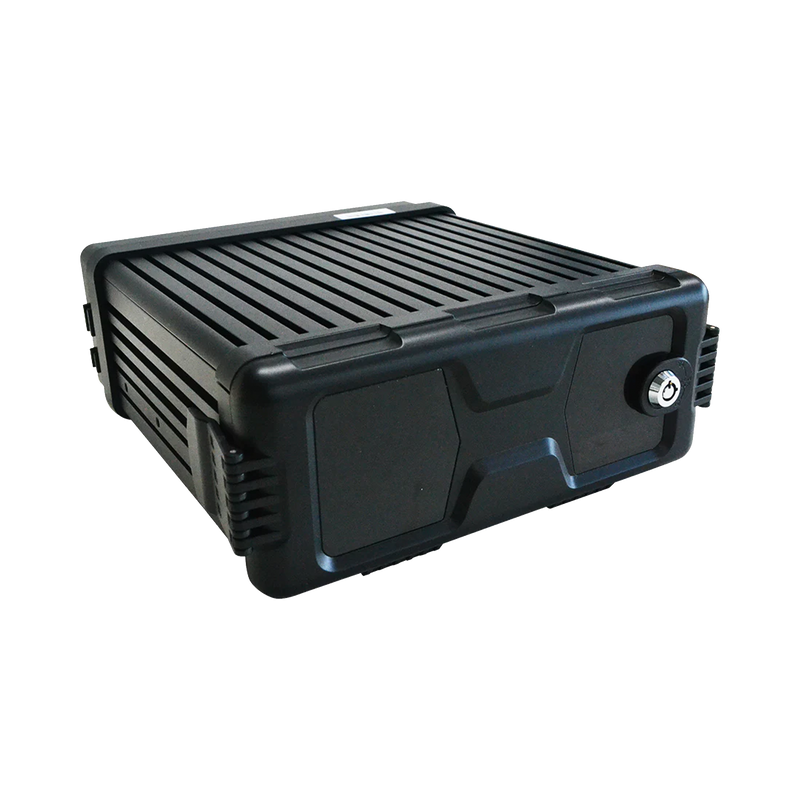

Motormax
12 Channel DVR
MMD8CH1TB
Overview
- 8 Channel AHD + 4 Channel IPC
- Supplied with 1TB shock resistant HDD
- Supports SD card mirror back up
- Built in GPS for vehicle tracking
- 2 Video outputs
- Supports full AHD 1920x1080 resolution
Offline Features
- View footage, GPS & Speed from connected HDD
- Export footage to .avi file type
Full Specification
|
Function |
Preview, Recording, Playback, Network, Locating |
|
|
System |
OS |
Linux 3.0.8 |
|
Control Mode |
Easy Check, network, CP4, mouse (3G/4G/Wifi) |
|
|
Video |
Input |
8 Channels AHD + 4 Channels IPC |
|
Output |
2 Channel |
|
|
Total Resource |
PAL: 8*720P@25FPS (AHD) +4*1080P@30FPS (IPC) Or 8*1080P@12FPS (AHD) +4*1080P@30FPS (IPC) NTSC: 8*720P@30FPS (AHD)+4*1080P@30FPS (IPC) Or 8*1080P@15FPS (AHD)+4*1080P@30FPS (IPC) |
|
|
Video Signal Standard |
Electrical level: 1Vpp Impedance: 75 NTSC/PAL optional |
|
|
UTC |
Support setting AHD camera OSD |
|
|
Audio |
Input |
12 Channels |
|
Output |
2 Channel |
|
|
Audio Signal Standard |
Electrical level: 2Vpp input impredance 4.7k |
|
|
Display |
Display Split |
1/4/9 |
|
OSD |
GPS information, alarm, temperature, acceleration, voltage, device information, software version, MCU version, network status |
|
|
Operation Interface |
Semi-transparent GUI |
|
|
Recording |
Video/Audio Compression |
Video: H.264 |
|
Audio: ADPCM (G.711A, G711U optional) |
||
|
Image Resolution |
PAL: 1080P, 720P, WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288); NTSC:1080P, 720P, WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), HD1(704x240), CIF(352x240); Digital: 720P(1280X720) |
|
|
Image Quality |
1-8 Adjustable levels |
|
|
Recording Mode |
Schedule/Alarm(sensor trigger, speed, acceleration, video loss, temperature) |
|
|
Pre-recording |
0-60 Minutes |
|
|
Post-recording |
0-30 Minutes |
|
|
Mirror / Dual Recording |
Yes |
|
|
Playback |
Playback Channel |
4 Channels by local playback |
|
Search Mode |
Date & time, Channel, event |
|
|
Locating |
GPS |
Location tracking, speed detection and time sync |
|
Storage |
HDD |
Supports 2.5” HDD or SSD up to 2TB |
|
SD Card |
1 x SD (Max 256GB0 |
|
|
Interface |
USB |
2x USB2.0 |
|
SIM |
2x SIM Slot |
|
|
RS232 |
2x RS232 |
|
|
RS485 |
2x RS485 |
|
|
Sensor |
8 Inputs & 2 Outputs |
|
|
Speed |
1 Channel pulse speed detection |
|
|
Control Panel |
CP4 Optional |
|
|
VGA |
1x VGA |
|
|
Inter Communication |
1x MIC Interface |
|
|
Power |
Input |
DC8-36V, ACC |
|
Output |
5V@500mA, 12V@500mA |
|
|
Max Power Consumption |
105.3W |
|
|
Standby Power Consumption |
0W |
|
Dimensions |
Dimension (LxWxH) |
295 x 222 x 89 mm |
|
Weight |
2.6KG |
|
|
Environment |
Operating Temperature |
-10°C +70°C : -40°C +70°C (With heater) |
|
Operating Relative Humidity |
8%-90% |
